Aluminium Cladding Sheet

sales@aluminumhm.com Get samples and prices !

Cut to size at customers' need !

Add to Product Favorites
Share
Aluminum cladding sheet can be factory applied with moisture barrier, the function is to prevent galvanic and chemical corrosion caused by contact of dissimilar metals in the presense of moisture, and by certain insulation materials when the sheets are installed over damp insulation materials. We have two types moisture barrier: Poly Surlyn and Craft paper(kraftpaper).

Grade: 1006, 1100, 3003, 3105, 5005
Temper: O, H12, H14, H16, H24, etc.
Common use: 3003 H14 H16, 1100 H14 H16, 5005 H14
Type: Coil roll
Application: Industrial insulation jacketing, cover, insulation protective jacketing
Thickness: 0.3-1.5mm
Width: 914mm, 1000mm, 1219mm
Length: 20, 25,30, 60, 90m per roll or as per clients
Surface Treatment: Plain, Flat, mill finish, Embossed
Moisture barrier: polysurlyn, craft paper
Certificate: ISO9001, GB/T3880, ASTM B209
Packaging: packed in carton or coil in wooden pallet
Delivery time: 25-45 days
Minimum order quantity: 2 tons

Specification of aluminium sheet cladding

Alloy   Thickness(inch) Thickness(mm) Width(mm) Length(m) Suggested Application
1100, 1060, 3003, 3105, 5005 H14, H16 0.012 0.3 914, 1000, 1219 20, 25,30, 60, 90, coil OD below 36"(914mm) insulated pipe lines.
0.016 0.4 914, 1000, 1219 20, 25,30, 60, 90, coil OD below 36"(914mm) insulated pipe lines.
0.020 0.5 914, 1000, 1219 20, 25,30, 60, 90, coil OD below 36"(914mm) insulated pipe lines.
0.024 0.6 914, 1000, 1219 20, 25,30, 60, 90, coil OD 36"-8′ (914mm-2.43m) insulated pipe lines&equipment.
0.032 0.8 914, 1000, 1219 20, 25,30, 60, 90, coil special applications where extra thickness and protection is required, such as fabricated tank head covers and other special fabrications.
0.040 1.0 914, 1000, 1219 20, 25,30, 60, 90, coil special applications where heavy mechanical is required.
0.050 1.2 914, 1000, 1219 20, 25,30, 60, 90, coil flat ducts or precipitators. Also recommended for areas subject to high wind conditions.

Chemical Composition of aluminium sheet cladding

Alloy Si Fe Cu Mn Zn Mg Ti Cr Other Elements Al
  Each Total
1060 0.25 0.35 0.05 0.03 0.05 0.03 0.03 - 0.03   99.6min
1100 Si+Fe=0.95 0.05-0.20 0.05 0.10 - - - 0.05 0.15 99.0min
3003 0.6 0.7 0.05-0.20 1.0-1.50 0.10 - - - 0.05 0.15 reminder
3105 0.6 0.7 0.30 0.30-0.80 0.40 0.20-0.80 0.10 0.20 0.05 0.15 reminder
5005 0.3 0.7 0.20 0.20 0.25 0.50-1.10 - - 0.05 0.15 reminder

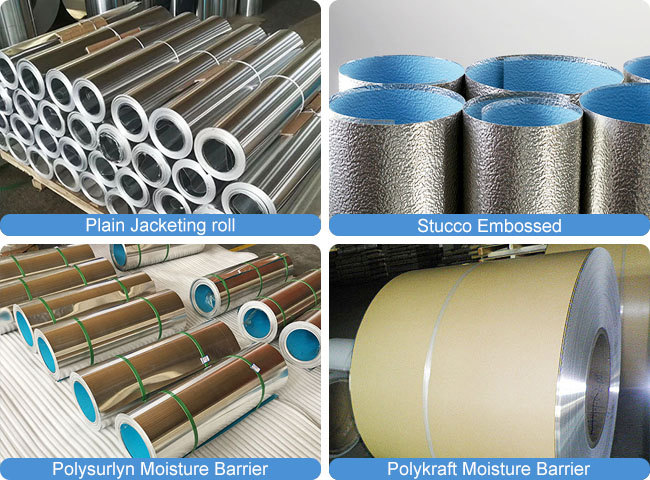

The classification of aluminium pipe cladding

Smooth Aluminum Jacketing

1.Shield rain water the best.
2. Prevent damage such as physical abuse.
3. Prevent the dirt due to its smoothness.
4. It is highly reflective of sunlight.

Stucco embossed Aluminum Jacketing

1, Increase its strength and ductility.
2, Extend its lifetime.
3, Better bribability, durability.
4, Effectively reduce rowing.
5, Not cause strong light reflecting.
6, Have a good vision effect.

Aluminum Jacketing with Moisture barrier

Haomei Aluminum Jacketing products can be supplied with a 40# kraft (1 1/2 mil polyethylene) or a 3 mil polysurlyn moisture retarder which is heat and pressure bonded to the interior surface. A moisture retarder helps prevent galvanic corrosion caused by contact of dissimilar metals in the presence of moisture or chemical corrosion caused by installing sheets over damp insulation materials.

Benefit:Moisture barrier prevents corrosion and protect inner insulation materials

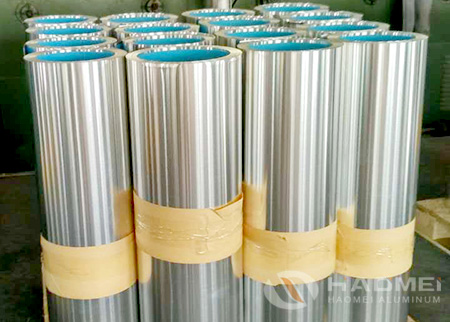

Aluminum jacketing laminated with polysurlyn

Poly surlyn : Dupont surlyn, 3 mil thickness(76um)
Color: Bule
Aluminum sheet thickness : 0.3-1.5mm
Package: 20-30m/roll in one carton or big coil
Advantage: water-proof, prevent oxidation

Aluminum jacketing laminated with kraftpaper

Kraft-paper: 166g/m2
Color: khaki
Aluminum sheet thickness: 0.3-1.5mm
Package: 20-30m/roll in one carton or big coil
Advantage: water-proof, prevent oxidation

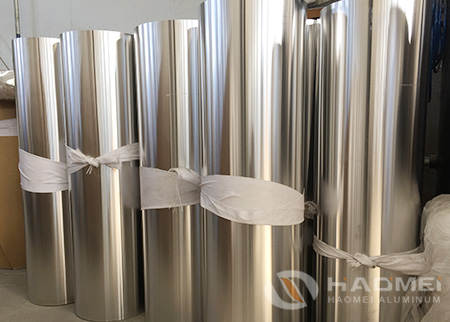

aluminum jackating

Features of aluminum sheet cladding

1.Customized packaging solutions for extended shelf life
2.Excellent barrier against moisture, oxygen & odour
3.Excellent mechanical properties even at low thickness
4.High burst strength and puncture resistant.

Application of cladding aluminum sheet

Aluminum Jacketing is recommended for use in all of the following insulation system applications:
• Standard outdoor use on all pipe, vertical tank insulation systems up to 8 ft outer diameter, and all horizontal tanks.
• Indoor insulation system applications up to 8 ft outer diameter where increased damage resistance is desired.

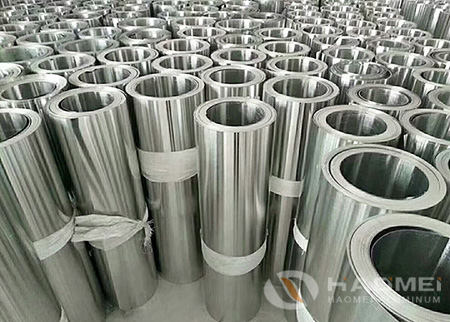

aluminum jacket for pipe insulation


Strength of Haomei Al.
  • Technologies:Top polishing technology guarantees good luster and smooth surface.
  • Markets:Obtain market sharing all over the world.
  • Equipment:Advanced cutting line to provide a wide range of specifications.
  • Production capacity:200, 000 tons annually in total.
  • Employees:Over 25 sale persons to provide good service for customers.
  • Responsibility: Engaged in charity donation and provide eco-friendly products.

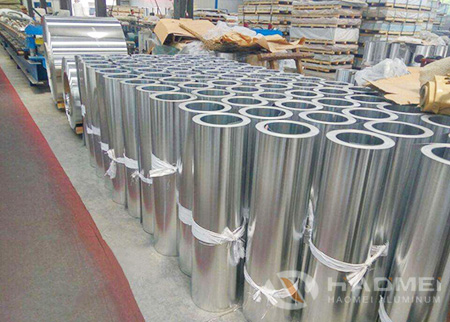

Packaging and Delivery of Haomei Al.

Aluminum products of Haomei Al. meet the export standard. Plastic film and brown paper can be covered at customers’ need. What’s more, wooden case or wooden pallet is adopted to protect products from damage during the delivery. There are two kinds of packaging, which is eye to wall or eye to sky. Customers can choose either of them for their convenience. Generally speaking, there are 2 tons in one package, and loading 18-22 tons in 1×20′ container, and 20-24 tons in 1×40′ container.
