Battery Aluminum Foil

sales@aluminumhm.com Get samples and prices !

Cut to size at customers' need !

Add to Product Favorites
Share

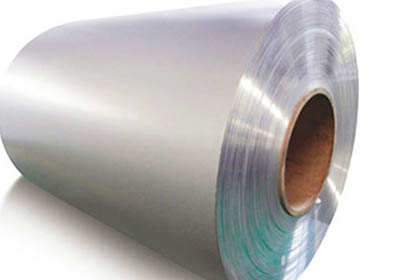

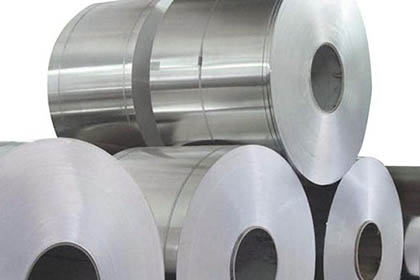

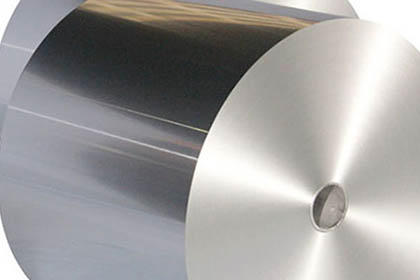

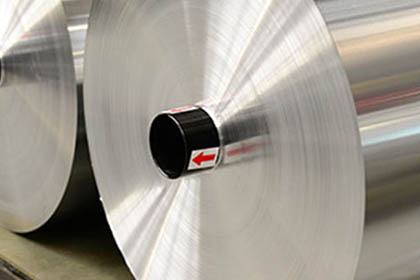

Properties of Battery Shell Aluminum Foil / Electronic Aluminum Foil

Battery aluminum foil has 1060, 1050, 1145, 1235 and other alloy brand, 1235 aluminum foil for battery have -O, H14, -H24, -H22, -H18 and other temper. The surface of battery aluminum foil is uniform and clean, smooth aluminum foil, roll marks, no obvious pores and pits, traces of corrosion; No crease, foil surface spots and bright line rolling defect; No chromatic aberration on the surface of aluminum foil; No oil surface, no serious oil smell, no visible staining.

Battery Shell AluminumFoil

Products

Type

Temper

Thickness(mm)

Width(mm)

Length(mm)

1235

Bare, Mill Finish

O H18

0.014-0.2

100-1600

coil

1060

O H14 H18

0.016-0.2

100-1600

coil

1070

O H18

0.016-0.2

100-1600

coil

The Applications of Battery Shell aluminum foil:

Battery shell aluminum foil is widely used for Flexible packaging battery, such as computer, mobile and toy.

Chemical Composition of Battery Shell aluminum foil:

Alloy Max. %
Si Fe Cu Mn Mg Cr Ni Zn Ti Others Al
Each Total
1050 0.25 0.40 0.05 0.05 0.05 0.05 0.05V 0.03 0.03 99.5
1060 0.25 0.35 0.05 0.03 0.03 0.05 0.05V 0.03 0.03 99.6
1070 0.20 0.25 0.04 0.03 0.03 0.04 0.05V 0.03 0.03 99.7
1235 0.65 0.05 0.05 0.05 0.10 0.05V 0.06 0.03 99.35

Features of Battery Shell aluminum foil:

1, Excels in foil flexibility
Due to its flexibility, this foil is resistant to the expansion and contraction of battery at the time of charge/discharge.
2, Good in smoothness on either side
The active material to provide the functionality of battery can be applied uniformly.
3, Small in foil thickness variation
Due to its small thickness variation, the coating thickness variation of active material can be suppressed.
To raise the output power, the HEV battery has a thinner active material layer than the commercial batteries.
The smaller the foil thickness variation, the smaller can be made the thickness variation of the active material.
This advantageous property of our product has been highly appreciated by every automotive battery manufacturers, and is often a decisive factor in accepting orders.

Haomei , equipped with advanced equipment and technology, is one of the leading best quality battery shell aluminum foil from china market manufacturers and suppliers in China. Please rest assured to buy or wholesale the quality, durable and customized products at low price from our factory.


Strength of Haomei Al.
  • Technologies:Top polishing technology guarantees good luster and smooth surface.
  • Markets:Obtain market sharing all over the world.
  • Equipment:Advanced cutting line to provide a wide range of specifications.
  • Production capacity:200, 000 tons annually in total.
  • Employees:Over 25 sale persons to provide good service for customers.
  • Responsibility: Engaged in charity donation and provide eco-friendly products.
Packaging and Delivery of Haomei Al.

Aluminum products of Haomei Al. meet the export standard. Plastic film and brown paper can be covered at customers’ need. What’s more, wooden case or wooden pallet is adopted to protect products from damage during the delivery. There are two kinds of packaging, which is eye to wall or eye to sky. Customers can choose either of them for their convenience. Generally speaking, there are 2 tons in one package, and loading 18-22 tons in 1×20′ container, and 20-24 tons in 1×40′ container.
