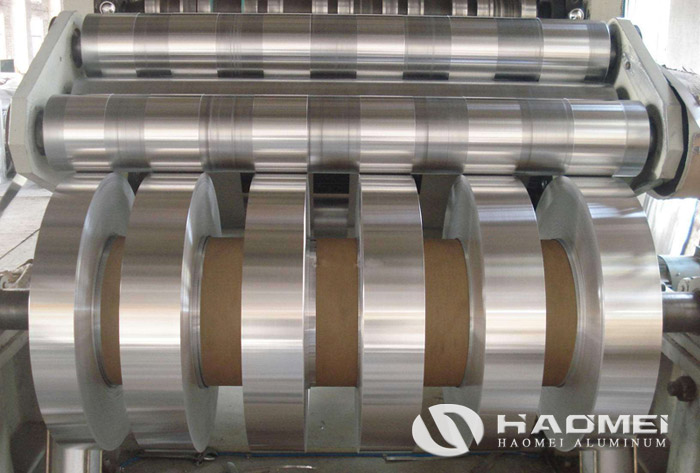

1060 Aluminum Strip

sales@aluminumhm.com Get samples and prices !

Cut to size at customers' need !

Add to Product Favorites
Share
Alloy:1060
Temper:HO,H12,H14,H16,H18,H22,H24,H26
Thickness:0.2mm-6.0mm
Width:80mm-2300mm
Standard production:ASTM-B-209M,BS EN 485-2,BS EN 573-3,GB/T3880-2008
MOQ:5 tons per size
Mother coil:DC or CC ID:76mm,152mm,408mm,508mm
Surface:Mill finishing,mirror finishing,checkered
Package:Export standard package with wooden pallet
Package way:Eye to sky or eye to wall
Delivery time:within 30days
Origin:Zhengzhou,China
Certificate: Mill Test Certificate,
Certificate of origin:Form A,Form E,CO
Payment: T/T, L/C

Chemical Properties of 1060 Aluminium Strip

Alloy Designation Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks Others Aluminium
min
Numerical Chemical Sympols Each Total
1060 AI 99.6 0.24 0.35 0.05 0.03 0.03 - - 0.05 0.03 - 0.05 - 0.03 - 99.60

Mechanical Properties of 1060 Aluminium Strip

Alloy Supplier
Temper
Testing
Temper
Thickness
(mm)
Tensile Strength
Rm/Mpa
Extension Strength
Rp0.2/MPa
Elongation after Break Bending Radius
A50mm A5.55e
Not less than
  O O > 0.2 - 0.30 60 - 100 15 15 - -
  > 0.3 - 0.50 18 - -
  > 0.5 - 1.50 23 - -
  > 1.5 - 6.0 25 - -
  > 6.0 - 80.0 25 22 -
  H12 H12 > 0.5 - 1.50 80 - 120 60 6 - -
  H22 H22 > 1.5 - 6.0 12 - -
  H14
H24
H14
H24
> 0.2 - 0.3 95 - 135 70 1 - -
  > 0.3 - 0.5 2 - -
  > 0.5 - 0.8 2 - -
  > 0.8 - 1.5 4 - -
  > 1.5 - 3.0 6 - -
  > 3.0 - 6.0 10 - -
  H16
H26
H16
H26
> 0.2 - 0.3 110 - 155 75 1 - -
  > 0.3 - 0.5 2 - -
  > 0.5 - 0.8 2 - -
  > 0.8 - 1.5 3 - -
  > 1.5 - 4.0 5 - -
  H18 H18 > 0.2 - 0.3 125 85 1 - -
  > 0.3 - 0.5 2 - -
  > 0.5 - 1.5 3 - -
  > 1.5 - 3.0 4 - -
  H112 H112 > 4.5 - 6.0 75 - 10 - -
  > 6.0 - 12.5 75 10 - -
  > 12.5 - 40.0 70 - 18 -
  > 40.0 - 80.0 60 - 22 -
  F - > 2.5 - 150 - -

Production Tolerance of 1060 Aluminium Strip

Thickness: (+/-0.02mm)
Width :( +2/-0mm)
Quatity:+/-10%

TOLERANCE
Major Brand A1060(O)
Thickness 0.2-0.4 0.4-0.8 0.9-1.1 1.2-1.6 1.8-2.0
tolerance ±0.01 ±0.015 ±0.02 ±0.025 ±0.03
Width <100 100-200 201-500 501-1250 >1250
tolerance ±0.1 ±0.2 ±0.2 ±1 ±2
BURR AND COLLAPSE
The width of aluminum belt burr’s height collapsed side’s height
<0.2 0.01 ≥0.05-0.1
0.2-1.0 0.015
1.1-1.5 0.02
>1.6 0.03
MECHANICAL PROPERTY
U.T.S: 60-95N/mm2 Elongation: >25%
Density in 20°C :2.703kg/dm3 Max.resistance in 20°C:≤0.02825Ωmm2/m


Application of 1060 Aluminium Strip

1.Lighting, printing, packing, decorative, electronics surface, hot rolled thick plate, PS base plate, aluminium plastic base plate, aluminium curtain wall base plate, aluminium composite panel base plate, aluminium spacer, aluminium embossed sheet.
2.Interior:wall cladding,ceilings,bathrooms,kitchens and balconies,shutters,doors,curtain wall.
3.Exterior:wall cladding,facades,roofing,camopies,tunnels,column cover,renovations.
4.Advertisement:display platforms,signboards,fascia,shop fronts.
Strength of Haomei Al.
  • Technologies:Top polishing technology guarantees good luster and smooth surface.
  • Markets:Obtain market sharing all over the world.
  • Equipment:Advanced cutting line to provide a wide range of specifications.
  • Production capacity:200, 000 tons annually in total.
  • Employees:Over 25 sale persons to provide good service for customers.
  • Responsibility: Engaged in charity donation and provide eco-friendly products.
Packaging and Delivery of Haomei Al.

Aluminum products of Haomei Al. meet the export standard. Plastic film and brown paper can be covered at customers’ need. What’s more, wooden case or wooden pallet is adopted to protect products from damage during the delivery. There are two kinds of packaging, which is eye to wall or eye to sky. Customers can choose either of them for their convenience. Generally speaking, there are 2 tons in one package, and loading 18-22 tons in 1×20′ container, and 20-24 tons in 1×40′ container.
