In the long-term operation and maintenance of pipeline insulation projects, moisture-induced failure of the insulation layer is the core cause of energy efficiency degradation and pipeline corrosion. However, most projects often only focus on the insulation material, neglecting the vapor barrier performance of the outer protective layer. As a manufacturer with over ten years of experience in the global aluminum insulation supply chain, we firmly believe that qualified pipeline outer protective materials should simultaneously fulfill the dual functions of "structural protection + moisture barrier."

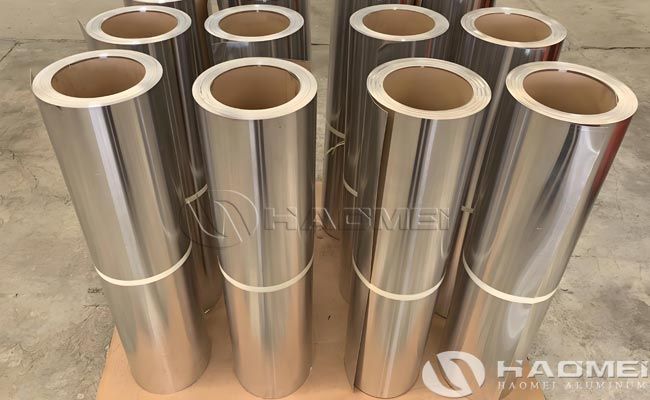

Haomei Aluminum polykraft laminated smooth aluminum coil is an integrated product built upon this understanding. Using a smooth aluminum coil as the structural carrier, it is laminated with special waterproof kraft paper to form a sealed vapor barrier layer. It is particularly suitable for the insulation and protection of regular indoor pipelines and is currently a high-performance, cost-effective choice for HVAC projects in overseas commercial buildings and cleanrooms.

The substrates of kraft paper laminated smooth aluminum coil are available in two grades: 1060 high-purity aluminum and 3003 aluminum-manganese rust-resistant alloy, both conforming to the ASTM B209 international material standard. The 1060 aluminum coil has an aluminum purity of ≥99.6%, a uniform and flexible texture, and exhibits crack-free bending. Its tensile strength is stable at 85–110 MPa, with a standard thickness range of 0.2–1.0 mm and a thickness tolerance strictly controlled within ±0.02 mm, making it suitable for most indoor hot and cold water pipe applications. The 3003 aluminum coil contains 1.0%–1.5% manganese, offering superior resistance to damp heat corrosion, making it suitable for high-humidity factories, underground pipe corridors, and other similar applications. The lamination process utilizes a high-temperature hot-melt dry process, ensuring uniform bonding between the kraft paper and the aluminum substrate. Under normal conditions, the peel strength is ≥6 N/25 mm, preventing delamination and warping during long-term use—a core quality control indicator that distinguishes us from lower-end composite products.

The combination of a smooth aluminum coil and a kraft paper moisture barrier creates a unique performance advantage that balances sealing efficiency and protective capabilities. Unlike embossed aluminum coils, which focus on outdoor deformation resistance, the core value of the smooth aluminum surface lies in its superior seam sealing and heat reflection efficiency: the flat surface allows for seamless bonding at joints and overlaps, effectively reducing heat loss caused by air convection. Its mirror-like heat reflectivity can reach over 86%, which can help improve the overall energy efficiency of the insulation system. The waterproof kraft paper composite layer forms a second vapor barrier, significantly reducing water vapor transmission and preventing indoor moisture from penetrating the insulation layer at its source. With many years of experience in the industry, I have always believed that indoor pipe insulation should not blindly pursue high-rigidity embossed models. The sealing benefits of smooth aluminum jacketing with polykraft far outweigh the premium of rigidity, especially for commercial HVAC systems that maintain constant temperatures year-round, where the overall energy efficiency is more outstanding.

Kraft paper laminated smooth aluminum coil is primarily designed for neatly laid indoor hot and cold water pipes, central air conditioning ducts, and cleanroom process pipes. Its smooth surface results in a clean and aesthetically pleasing finish, eliminating the risk of dust accumulation and meeting cleanroom hygiene requirements. Furthermore, the smooth aluminum profile offers low resistance during bending and seaming, allowing for on-site cutting to accommodate various pipe diameters, improving construction efficiency by approximately 15% compared to embossed models. The integrated composite structure eliminates the need for an additional vapor barrier, reducing on-site construction steps and material waste, and avoiding overlap issues common with manual vapor barrier installation, effectively lowering the probability of future insulation system failure.

Haomei kraft paper laminated smooth aluminum coils have a service life of over 15 years under normal operating conditions, requiring no painting or routine maintenance, significantly reducing building operation and maintenance costs. We support customized production in terms of width and roll weight. All coils undergo triple testing for moisture resistance, peel strength, and dimensional accuracy before leaving the factory, and their exclusive protective packaging protects against impacts and contamination during sea transport. Based on past export data, indoor insulation projects using this product can reduce rework rates due to moisture by more than 40%. It is a prudent choice that balances initial costs and long-term reliability, and it is also a high-performance, cost-effective insulation solution that we highly recommend to our overseas commercial building clients.
