ASTM B209 Aluminum Jacketing

2026-09-09

ASTM B209 is a core technical specification for aluminum and aluminum alloy sheets and coils, recognized throughout the global aluminum processing industry and serving as a primary entry requirement for international industrial insulation project tenders. As a manufacturer deeply engaged in the export of aluminum materials for thermal insulation, our industry experience shows that for medium-to-large overseas projects, the requirements regarding base material standards far outweigh the demand for differentiated surface finishes; compliance is the fundamental prerequisite for product quality. Haomei Aluminum's ASTM B209 aluminum jacketing strictly adhere to the standard's requirements regarding chemical composition, mechanical properties, and dimensional tolerances. By optimizing rolling processes for specific insulation operating conditions, we provide a professional jacketing substrate that combines regulatory compliance with operational suitability.

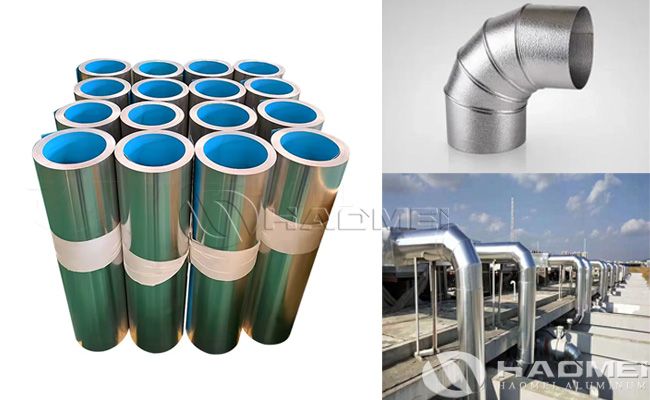

Haomei aluminum jacketing roll product strictly meets ASTM B209 technical specifications, covering two core, well-established alloy systems. The 1060 pure aluminum jacketing features an aluminum content of ≥99.60%, is supplied in H14 or H18 tempers, offers a tensile strength of 85–110 MPa and elongation of ≥6%, and is suitable for standard insulation applications. The 3003 aluminum-manganese alloy jacketing features a manganese content of 1.0%–1.5% and a tensile strength of 110–150 MPa (H14 temper); offering superior resistance to heat, humidity, and salt spray corrosion, it is designed for harsh operating environments. Products range in thickness from 0.2 mm to 1.5 mm, with common widths of 1000 mm and 1200 mm. Thickness tolerances are controlled within ±0.02 mm and width tolerances within ±0.5 mm, fully meeting standard precision requirements. Material test reports are provided for every batch, ensuring full traceability throughout the project acceptance process.

To address the diverse protective needs of insulation projects, three functional product categories have been developed within ASTM B209 aluminum jacketing rolls. The smooth-finish aluminum jacketing roll features a flat, clean surface with a specular thermal reflectivity exceeding 85% and excellent seam tightness, serving as the standard, general-purpose option. The orange-peel embossed aluminum jacketing roll utilizes precision roll-forming to enhance rigidity—increasing deformation resistance by 30%—making it suitable for complex outdoor construction environments. The aluminum jacketing roll laminated with kraft paper or poly-surlyn moisture barrier integrates a vapor barrier with the standard aluminum substrate, offering both structural protection and moisture resistance, specifically designed for high-humidity environments. All three aluminum jacketing product types adhere to unified quality control standards, with substrate properties fully compliant with ASTM B209 specifications.

ASTM B209 aluminum jacketing roll product offers significant engineering advantages.
First, it ensures consistent performance; standardized alloy composition and heat treatment processes guarantee stable mechanical and corrosion-resistant properties across batches, eliminating the risks associated with batch-to-batch variability found in non-standard products.
Second, it offers excellent construction adaptability; high-precision dimensional tolerances facilitate smoother on-site cutting, seaming, and bending, reducing material waste by over 10%.
Third, it boasts strong international compatibility; as ASTM B209 is recognized by engineering systems worldwide, the products can be used directly in international project bids, significantly cutting down on communication and re-inspection costs.
Data from our export projects indicates that using compliant, standard-grade substrates can reduce disputes related to final acceptance and long-term maintenance by more than 50%.

ASTM B209 aluminum jacketing rolls are widely suitable for various industrial and civil insulation applications. The standard smooth-finish aluminum jacketing roll is commonly used for indoor HVAC piping and production equipment insulation. The embossed aluminum jacketing roll is ideal for outdoor thermal piping networks, oil and gas pipelines, and the insulation and protection of open-air storage tanks. The aluminum jacketing roll with moisture barrier type is the preferred choice for cold-chain warehousing, underground utility tunnels, and insulation projects in high-humidity industrial facilities. Thanks to their regulatory compliance and consistent quality, ASTM B209 aluminum jacketing roll products have been deployed in large volumes for municipal and industrial insulation projects across the Middle East, Southeast Asia, Europe, and the Americas.
