Stucco Embossed Aluminum Jacketing with Moisture Barrier

2026-10-14

Haomei Aluminum's stucco embossed aluminum jacketing with moisture barrier is an integrated insulation material designed for high-humidity and outdoor environments. Utilizing an orange-peel embossed aluminum coil as the structural substrate and bonded with a specialized vapor-barrier/moisture-proof layer, it simultaneously enhances mechanical rigidity and moisture-vapor resistance. This product addresses common industry pain points—such as the insufficient vapor barrier performance of bare aluminum coils and the tendency of smooth-surfaced composite coils to deform or dent—making it a mainstream, upgraded choice for pipeline insulation projects and a versatile solution for industrial and municipal insulation applications worldwide.

The stucco embossed aluminum jacketing with moisture barrier is manufactured in strict accordance with the ASTM B209 international standard. It primarily utilizes two substrate systems—1060 pure aluminum and 3003 aluminum-manganese alloy—available in H14 and H18 tempers. The 1060 series features an aluminum purity of ≥99.6% and a tensile strength of 85–110 MPa, making it suitable for standard indoor and outdoor pipeline conditions. The 3003 series contains 1.0%–1.5% manganese, achieving a tensile strength of 110–150 MPa and offering superior resistance to heat, humidity, and salt spray corrosion. Product thicknesses range from 0.2 mm to 1.2 mm (with 0.3 mm and 0.5 mm being common engineering specifications), and standard widths are 1000 mm and 1200 mm; thickness tolerances are strictly controlled within ±0.02 mm. Precision roll-forming creates a uniform orange-peel texture with a depth of 0.03–0.05 mm, increasing longitudinal rigidity by approximately 25% compared to smooth substrates.

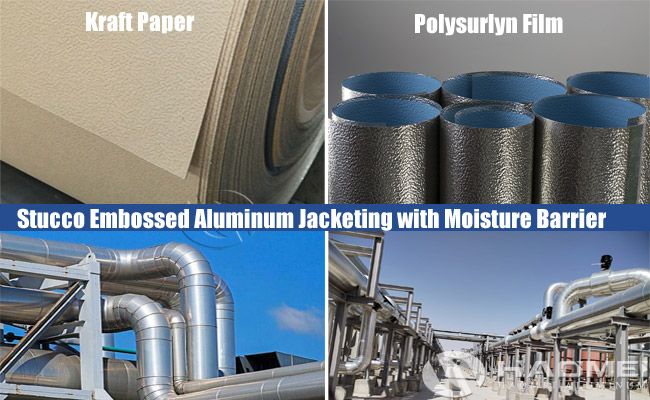

The stucco embossed aluminum jacketing with kraft paper moisture barrier option represents a cost-effective, mainstream choice. This configuration employs 80–120 g/m² industrial-grade water-resistant impregnated kraft paper as the primary vapor barrier on the inner side, and the layer is thermally bonded to the aluminum substrate using a high-temperature process. The resulting interlayer peel strength is ≥8 N/25 mm, ensuring no delamination or edge curling during long-term use. The finished product offers a water vapor transmission rate more than 30% lower than that of bare stucco embossed aluminum jackting. The flexible kraft paper backing adheres tightly to the insulation material, preventing slippage during installation (seaming), and meets vapor barrier requirements for most standard insulation applications.

The stucco embossed aluminum jacketing with polysurlyn moisture barrier option represents a high-performance upgrade. This solution replaces traditional kraft paper with a Surlyn ionomer resin film (0.05–0.08 mm thick). The film’s dense, non-porous structure reduces the water vapor transmission rate by approximately another 40% compared to the kraft paper version, offering exceptional vapor barrier performance, particularly in cryogenic environments. Surlyn film boasts excellent puncture resistance and low-temperature toughness—remaining crack-free and intact at -40°C—while also resisting oil and mild chemical corrosion to ensure long-lasting protection under harsh operating conditions.

The combination of an embossed texture and a moisture barrier offers dual advantages: resistance to deformation and effective vapor isolation. For outdoor installations, the stucco embossed aluminum jacketing withstands wind pressure and thermal cycling, preventing issues like bulging or denting. Meanwhile, the inner moisture barrier blocks water vapor from penetrating the insulation layer, thereby preventing insulation failure due to moisture and corrosion on the pipe's inner surface. Drawing on years of export experience, this structural design demonstrates superior operational stability on long-distance, elevated outdoor pipelines compared to smooth-surface products. Currently, the stucco embossed aluminum jacketing with kraft paper is widely used in municipal heating networks, underground utility tunnels, and standard industrial HVAC piping; the stucco embossed aluminum jacketing with polysurlyn film targets cryogenic refrigerant piping, cold chain storage facilities, high-humidity coastal plants, and chemical industrial park piping projects.

As a professional manufacturer of aluminum jackating, Haomei Aluminum offers customization regarding width, coil weight, and alloy temper. Every batch undergoes rigorous testing for peel strength, moisture resistance, and dimensional accuracy. Export orders come with specialized moisture-proof packaging and shipping solutions, and ASTM-standard material test reports are available upon request. Our products have been supplied in bulk for thermal insulation projects across multiple regions worldwide; please contact us for detailed specifications and price quotations.
