Polykraft Paper Coated Embossed Aluminum Coil

2026-09-16

The polykraft paper coated embossed aluminum coil is an integrated protective product developed by Haomei Aluminum specifically for harsh insulation environments, such as high-humidity or outdoor settings. Drawing on over a decade of experience exporting insulation aluminum jacketing materials, we recognized that single-material aluminum coils often struggle to simultaneously provide structural protection and effective sealing. By synergistically combining multiple functional layers, polykraft paper embossed aluminum coil ensures mechanical strength while enhancing vapor and water resistance, making it a cost-effective choice for industrial and municipal insulation projects.

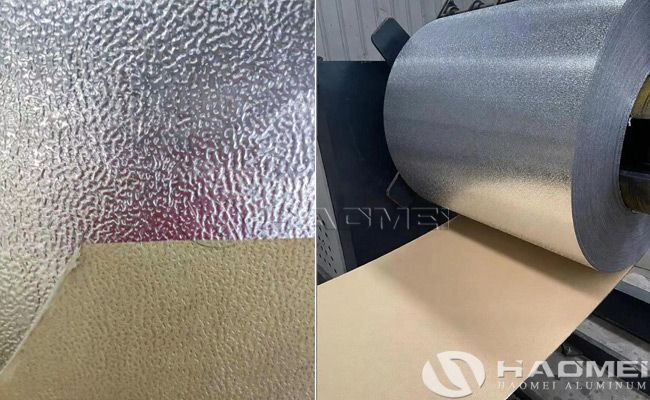

The polykraft paper coated embossed aluminum coil features an integrated two-layer dry composite structure, with clearly defined functions for each layer and reliable bonding strength. The outer layer is an embossed aluminum structural layer made from ASTM B209 1060 or 3003 aluminum alloy (H14/H18 temper). It comes in standard thicknesses ranging from 0.2 mm to 1.2 mm and features a precision-rolled, uniform "orange-peel" texture (with a depth of 0.03–0.05 mm), offering approximately 25% greater dent resistance than smooth-finish substrates. The inner layer is a waterproof kraft paper vapor barrier, utilizing 80–120 g/m² industrial-grade waterproof impregnated kraft paper, it bonds directly to the insulation material to serve as the primary vapor barrier. The entire product line is manufactured using a high-temperature hot-melt lamination process, achieving an interlayer peel strength of ≥8 N/25 mm and ensuring long-term durability without the risk of delamination or adhesive failure.

The multi-layer composite structure gives the polykraft paper embossed aluminum jacketing comprehensive performance advantages far superior to standard thermal insulation aluminum coils. A dual vapor barrier ensures superior moisture resistance; the polykraft paper layer reduces the water vapor transmission rate by over 30% compared to standard aluminum coils, effectively blocking environmental moisture and condensation from penetrating the insulation layer, thereby preventing insulation failure due to dampness and corrosion on the inner pipe walls. The inherent rigidity of the embossed aluminum, combined with the internal stress support provided by the composite layers, significantly enhances resistance to bulging, edge curling, and denting—making it ideal for outdoor environments with extreme temperature fluctuations and long-distance overhead installations. Additionally, the embossed texture improves grip during installation; the layers do not slip during bending or seaming, and on-site cutting waste is minimized. Feedback from our overseas projects indicates that installation efficiency is approximately 12% higher than that of standard paper-laminated smooth aluminum coils.

Thanks to its balanced protective performance, polykraft paper aluminum coil is ideally suited for a wide range of demanding insulation applications. It is a preferred choice for outdoor overhead thermal piping networks and district heating mains, where its resistance to wind loads and thermal deformation helps reduce the frequency of maintenance. In high-humidity, rainy regions or underground utility trenches, the dual-layer vapor barrier structure effectively prevents long-term issues such as mold growth and the degradation of insulation efficiency in hot and cold water piping. Versions featuring a 3003 aluminum alloy substrate are suitable for insulating industrial pipelines in coastal facilities and chemical parks, offering enhanced resistance to salt spray and corrosion. Furthermore, the product can be used for the outer cladding of small-to-medium storage tanks and process equipment housings, meeting the requirements for covering both curved and flat surfaces.

Haomei Aluminum offers customization options for polykraft paper coated embossed aluminum coil regarding width, coil weight, and alloy temper. Material testing and composite performance reports are provided for every batch, ensuring compliance with international engineering standards. The product has been supplied in bulk for municipal and industrial insulation projects across the Middle East, Southeast Asia, and South America, serving as a mature cladding solution that balances initial investment costs with long-term operational reliability.
