Aluminum Cladding For Cold Water Pipe Insulation

2026-06-17

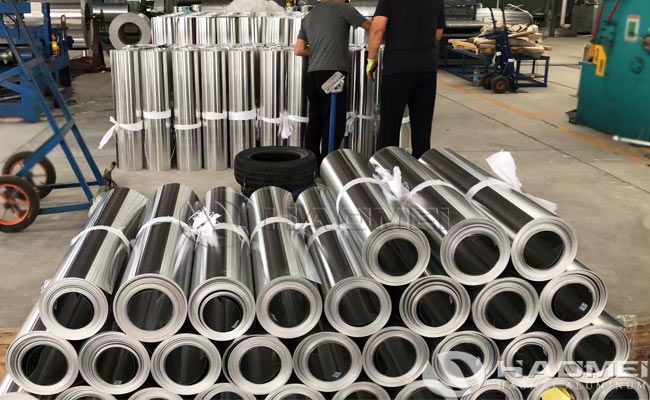

Haomei Aluminum custom-develops and manufactures cold water pipe insulation aluminum cladding to address the special operating conditions of low-temperature pipeline systems such as HVAC, industrial cold chain, and municipal water supply. Unlike high-temperature steam pipe insulation aluminum cladding materials, this product is designed with low-temperature brittleness resistance, steam barrier and condensation prevention, and long-term cold insulation as its core design logic. It is suitable for pipeline operating environments with year-round low temperatures, fluctuating temperature differences, and condensation-prone conditions, making it the standardized main coating material for cold water pipeline insulation projects worldwide. Based on mature rolling composite technology and a rigorous quality inspection system, Haomei aluminum cladding is widely used in commercial buildings, industrial plants, and municipal pipeline projects.

Haomei cold water pipe insulation aluminum cladding primarily feature two mainstream grades: 1060 high-purity aluminum and 3003 aluminum-manganese anti-rust alloy, fully complying with the ASTM B209 international standard.
The 1060-H14/H18 temper aluminum cladding coil boasts an aluminum purity of ≥99.6%, uniform texture, and excellent low-temperature toughness, avoiding the hardening and brittleness issues associated with sheet metal in low-temperature environments. Its tensile strength is consistently between 85–110 MPa, with a thickness range of 0.2–1.2 mm. The 0.5 mm thickness is a popular and widely used specification, offering excellent value and suitability for conventional civil and municipal cold water pipes.
The 3003 alloy aluminum cladding coil, with added manganese to refine the grain, significantly upgrades structural strength and salt spray resistance, allowing it to withstand harsh conditions such as high humidity, coastal environments, and chemical plants. It is primarily targeted at mid-to-high-end industrial cold chain and large-scale central air conditioning chilled water systems.

Addressing the core pain points of cold water pipes—prone to condensation, susceptible to leakage, and requiring airtight insulation—the cold water pipe insulation aluminum cladding products are divided into three mature categories.
The smooth, dense surface of the plain aluminum cladding coil ensures excellent joint sealing, minimizing cold loss and making it suitable for clean and well-organized indoor cold water pipe systems.
Orange peel embossed aluminum cladding coils utilize a roll forming process to enhance the rigidity of the sheet material, making them dent-resistant and abrasion-resistant. This solves the problem of deformation during transportation and construction of thin aluminum coils, making them suitable for outdoor, open-air, and high-altitude cold water pipelines.
The kraft paper and poly surlyn film coated aluminum cladding feature a built-in vapor barrier layer, completely blocking moisture penetration and preventing insulation layer dampness, mold growth, and reduced cooling efficiency. This is an essential product for cold water projects in high-humidity environments.

The dedicated performance advantages for low-temperature conditions completely solve common defects in traditional cold water insulation systems. Ordinary insulation materials are prone to surface condensation and moisture penetration due to temperature differences, leading to problems such as waterlogging and insulation failure, pipe corrosion, and wall dampness. Haomei cold water pipeline insulation aluminum cladding have a density of only 2.71g/cm³, and their lightweight nature reduces the load on pipe supports. Simultaneously, a dense self-oxidizing protective film forms on the aluminum surface, providing long-lasting rust prevention and anti-aging capabilities. The aluminum cladding material undergoes low-temperature tempering, ensuring stable performance across a temperature range from room to low. It exhibits no shrinkage, cracking, or delamination risks, and possesses exceptional sealing properties, effectively blocking air convection, reducing heat loss, and stabilizing the operating temperature of the pipeline medium.

Cold water pipe insulation aluminum cladding boasts excellent bending and cutting performance, high coverage and fit, and is suitable for various pipe diameters and irregular pipe shapes, effectively shortening on-site installation cycles. Protective models can withstand sea impacts and construction scratches, ensuring stable factory quality and eliminating the need for subsequent painting and maintenance. With its superior vapor barrier, cold insulation, moisture-proof, and corrosion-resistant properties, aluminum cladding significantly improves the energy efficiency of chilled water pipeline systems and extends the service life of insulation structures, making it a preferred insulation material for chilled water pipelines that combines economic efficiency and industrial stability.
